LCD TV

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at

www.samsung.com/register

Model Serial No.

BN68-02327L-03L09-Cover.indd 1 2009-10-08 �� 10:42:07

License

TruSurround HD, SRS and symbol are trademarks of SRS Labs, Inc. TruSurround HD technology is

incorporated under license from SRS Labs, Inc.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of

Dolby Laboratories.

DivX® Certified to play DivX® video, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an official DivX Certified device that plays

DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand

(VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com

with this code to complete the registration process and learn more about DivX VOD.

Digital TV Notice

1. Functionalities related to Digital TV(DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital

terrestrial signals are broadcasted or where you are able to access to a compatible DVB-C(MPEG2 and MPEG4 AAC) cable-

TV service. Please check with your local dealer the possibility to receive DVB-T or DVB-C signal.

2.

DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-

C is that for the broadcast transmission of digital TV over cable. However, some differentiated features like EPG (Electric

Programme Guide), VOD (Video on Demand) and so on, are not included in this specification. So, they cannot be workable at

this moment.

3.

Although this TV set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T

digital terrestrial and DVB-C digital cable broadcasts cannot be guaranteed.

4.

Depending on the countries/areas where this TV set is used some cable-TV providers may charge an additional fee for such a

service and you may be required to agree to terms and conditions of their business.

5.

Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with some

cable service providers.

6.

For more information, please contact your local Samsung customer care centre.

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen

Do not display still image and partially still on the LCD panel for more than 2 hours as it can cause screen image retention.

This image retention is also known as screen burn. To avoid such image retention, reduce the degree of brightness and

contrast of the screen when displaying a still image.

Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the

left, right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or

a game console may cause a similar effect to the screen. Damages caused by the above effect are not

covered by the Warranty.

Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To

prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

❑

●

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

Product design and specications may be changed without notice.

BN68-02327L-03Eng.indb 1 2009-10-08 �� 10:28:42

La pagina si sta caricando...

English - 2

SETTING UP YOUR TV

Accessories

Remote Control & Batteries (AAA x 2) Power Cord Cover-Bottom Cleaning Cloth

Warranty Card / Safety Guide

(Not available in all locations)

Owner’s Instructions Programme CD

Holder-Wire Cable

(Depending on the model)

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

The items colour and shape may vary depending on the model.

Viewing the Control Panel

The product colour and shape may vary depending on the model.

The front panel buttons can be activated by touching it with your finger.

8

6 5 4 37 21

1

P

(POWER): Press to turn the TV on and off.

2

POWER INDICATOR: Blinks and turns off when the power is on and lights up in stand-by mode.

3

z

: Press to change channels. In the on-screen menu, use the

z

buttons as you would use the ▼ and ▲

buttons on the remote control.

4

Y

: Press to increase or decrease the volume.

In the on-screen menu, use the

Y

buttons as you would use the ◄ and ► buttons on the remote control.

5

MENU: Press to see an on-screen menu of your TV’s features.

6

SOURCE

E

: Toggles between all the available input sources. In the on-screen menu, use this button as you would use the

ENTER

E

button on the remote control.

7

REMOTE CONTROL SENSOR: Aim the remote control towards this spot on the TV.

8

SPEAKERS

¦

N

¦

N

BN68-02327L-03Eng.indb 2 2009-10-08 �� 10:28:44

La pagina si sta caricando...

English - 6

Installing Batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown in the figure.

2.

Install two AAA size batteries.

Make sure to match the ‘+’ and ‘–’ ends of the batteries with the diagram inside the

compartment.

3.

Replace the cover.

Remove the batteries and store them in a cool, dry place if you won’t be using the

remote control for a long time.

If the remote control doesn’t work, check the following:

Is the TV power on?

Are the plus and minus ends of the batteries reversed?

Are the batteries drained?

Is there a power outage or is the power cord unplugged?

Is there a special fluorescent light or neon sign nearby?

OPERATION

Viewing the menus

Before using the TV, follow the steps below to learn how to navigate the menu in order to select and adjust different functions.

How to operate the OSD (On Screen Display)

The access step may differ depending on the selected menu.

1.

Press the MENU button.

2.

The main menu appears on the screen. The menu’s left side has icons : Picture, Sound,

Channel, Setup, Input, Application, Support.

3. Press the ▲ or ▼ button to select one of the icons.

4.

Then press the ENTER

E

button to access the icon’s sub-menu.

5.

Press the ▲ or ▼ button to select the icon’s submenu.

6.

Press the ◄ or ► button to decrease or increase the value of a particular item. The

adjustment OSD may differ depending on the selected menu.

7.

Press the ENTER

E

button to complete the configuration. Press the EXIT button to exit.

¦

N

•

¦

❑

INFO

GUIDE

CH LIST

AD

MENU Button

Display the main on-screen menu.

ENTER

E

/ DIRECTION Button

Move the cursor and select an item.

Select the currently selected item.

Confirm the setting.

RETURN Button

Return to the previous menu.

EXIT

Exit the on-screen menu.

INFO

GUIDE

CH LIST

AD

INFO

GUIDE

CH LIST

AD

Mode :Standard ▶

Backlight :7

Contrast :95

Brightness :45

Sharpness :50

Colour :50

Tint(G/R) :G50/R50

AdvancedSettings


Mode :Standard

Backlight :7 ▶

Contrast :95

Brightness :45

Sharpness :50

Colour :50

Tint(G/R) :G50/R50

AdvancedSettings

PictureOptions


7

U

Move

L

Adjust

E

Enter

R

Return

▲

Backlight

▼

Help icon

BN68-02327L-03Eng.indb 6 2009-10-08 �� 10:28:46

La pagina si sta caricando...

English - 9

Manual Store

Scans for a channel manually and stores it in the TV’s memory.

If a channel is locked using the Child Lock function, the PIN input window appears.

Digital Channel

Manual store for digital channels.

Digital Channel is only available in DTV mode.

Channel: Set the Channel number using the ▲, ▼ or number (0~9) buttons.

Frequency: Set the frequency using the number buttons.

Bandwidth: Set the bandwidth using the ▲, ▼ or number (0~9) buttons.

When it has finished, channels are updated in the channel list.

Analogue Channel

Manual store for analogue channel.

Programme (Programme number to be assigned to a channel): Sets the programme number using the ▲, ▼ or number (0~9)

buttons.

ColourSystem→Auto/PAL/SECAM/NTSC4.43: Sets the colour system value using the ▲ or ▼ button.

SoundSystem→BG/DK/I/L: Sets the sound system value using the ▲ or ▼ button.

Channel (When you know the number of the channel to be stored): Press the ▲ or ▼ button to select C (Air channel) or

S (Cable channel). Press the ► button, then press the ▲, ▼ or number (0~9) buttons to select the required number.

You can also select the channel number directly by pressing the number (0~9) buttons.

If there is abnormal sound or no sound, reselect the sound standard required.

Search (When you do not know the channel numbers): Press the ▲ or ▼ button to start the search. The tuner scans the

frequency range until the first channel or the channel that you selected is received on the screen.

Store (When you store the channel and associated programme number): Set to OK by pressing the ENTER

E

button.

Channel mode

P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position

numbers from P00 to P99. You can select a channel by entering the position number in this mode.

C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this

mode.

S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode.

Cable Search Option (depending on the country)

Sets additional search options such as the frequency and symbol rate for cable network searches.

Freq.Start (Frequency Start): Set the start frequency (Differs in each country)

Freq.Stop (Frequency Stop): Set the stop frequency (Differs in each country)

Modulation: Displays available modulation values.

Symbol Rate: Displays available symbol rates.

Full Guide / Mini Guide

The EPG (Electronic Programme Guide) information is provided by the broadcasters. Programme entries may appear blank or out

of date as a result of the information broadcast on a given channel. The display will dynamically update as soon as new information

becomes available.

You can also display the guide menu simply by pressing the GUIDE button. (To configure the Default Guide, refer to the

descriptions.)

Full Guide

Displays the programme information as time ordered One hour segments. Two hours of programme information is displayed which

may be scrolled forwards or backwards in time.

Mini Guide

The information of each programme is displayed by each line on the current channel Mini Guide screen from the current

programme onwards according to the programme starting time order.

❑

N

■

N

●

N

■

●

N

●

N



❑

●

❑

O

■

BN68-02327L-03Eng.indb 9 2009-10-08 �� 10:28:47

La pagina si sta caricando...

English - 11

Managing Channels

Using this menu, you can add / delete or set favourites channels and use the programme guide for digital broadcasts.

All Channels

Shows all currently available channels.

Added Channels

Shows all added channels.

Favourites

Shows all favourite channels.

To select the favourites channels you have set up, press the FAV.CH button on the remote

control.

Programmed

Shows all current reserved programmes.

Select a channel in the All Channels, Added Channels or Favourites screen by pressing the ▲ / ▼ buttons, and pressing

the ENTER

E

button. Then you can watch the selected channel.

Using the Colour buttons with the Channel List

Red (Channel Type): Toggle between your TV, Radio, Data / Other and All.

Green (Zoom): Enlarges or shrinks a channel number.

Yellow (Select): Selects multiple channel lists. You can perform the add/delete or add to favourites/delete from favourites

function for multiple channels at the same time. Select the required channels and press the Yellow button to set all the

selected channels at the same time. The

c

mark appears to the left of the selected channels.

TOOLS (Tools): Displays the Delete (or Add), Add to Favourite (or Delete from Favourite), Lock (or Unlock),

Timer Viewing, Edit Channel Name, Edit Channel Number, Sort, Select All (or Deselect All), Auto Store menu. (The

Options menus may differ depending on the situation.)

Channel Status Display Icons

A

: An Analogue channel.

c

: A channel selected by pressing the Yellow button.

*

: A channel set as a Favourite.

(

: A programme currently being broadcast.

\

: A locked channel.

)

: A reserved programme

Channel List Option Menu (in All Channels / Added Channels / Favourites)

Press the TOOLS button to use the option menu.

Option menu items may differ depending on the channel status.

Add / Delete

You can delete or add a channel to display the channels you want.

All deleted channels will be shown on All Channels menu.

A gray-coloured channel indicates the channel has been deleted.

The Add menu only appears for deleted channels.

You can also delete a channel to the Added Channels or Favourites menu in the same

manner.

Add to Favourite / Delete from Favourite

You can set channels you watch frequently as favourites.

Press the TOOLS button to display the Tools menu. You can also set the add to (or delete from) Favourite by selecting Tools

→AddtoFavourite (or Delete from Favourite).

The “

*

” symbol will be displayed and the channel will be set as a favourite.

All favourite channels will be shown on Favourites menu.

¦

■

O

■

N



N

•

N

■

N

■

T

N

AddedChannels

824UKTVGold

825UKTVstyle

A

1C--

A

2C--

A

3C--

A

4C--

A

5C--

A

6C--

A

7C--

A

8C--

All ChannelType Zoom Select

T

Tools

AllChannels

824UKTVGold

825UKTVstyle

A

1C--

A

2C--

A

3C--

A

4C--

A

5C--

A

6C--

A

7C--

A

8C--

All ChannelType Zoom Select

T

Tools

Delete

AddtoFavourite

Lock

TimerViewing

EditChannelName

Sort



BN68-02327L-03Eng.indb 11 2009-10-08 �� 10:28:48

La pagina si sta caricando...

English - 17

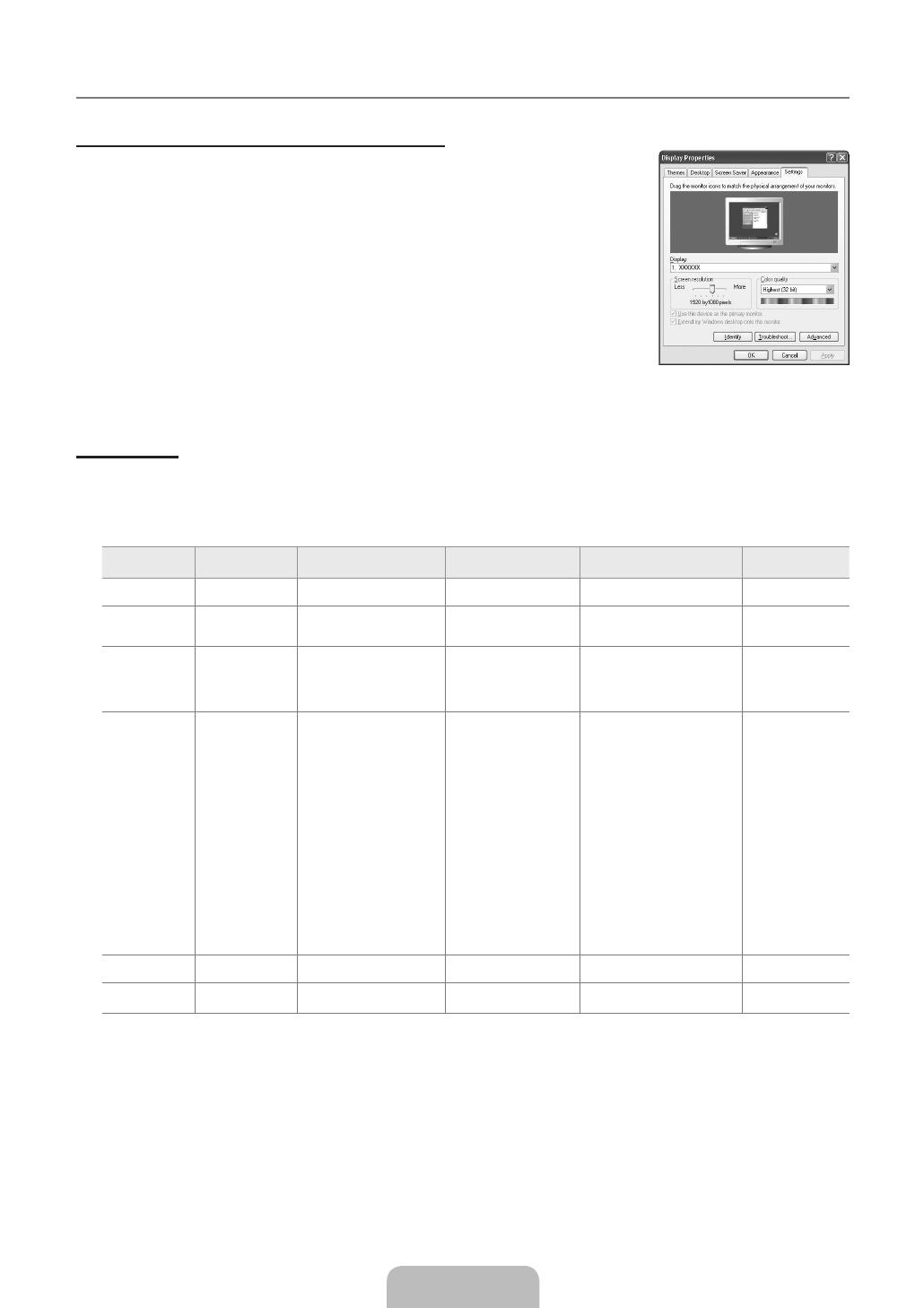

Using Your TV as a Computer (PC) Display

Setting Up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. The actual screens on

your PC will probably be different, depending upon your particular version of Windows and

your particular video card. However, even if your actual screens look different, the same basic

set-up information will apply in almost all cases. (If not, contact your computer manufacturer or

Samsung Dealer.)

1.

First, click on ‘Control Panel’ on the Windows start menu.

2.

When the control panel window appears, click on ‘Appearance and Themes’ and a display

dialog-box will appear.

3.

When the control panel window appears, click on ‘Display’ and a display dialogbox will

appear.

4.

Navigate to the ‘Settings’ tab on the display dialog-box.

The correct size setting (resolution) - Optimum: 1920 X 1080 pixels

If a vertical-frequency option exists on your display settings dialog box, the correct

value is ‘60’ or ‘60 Hz’. Otherwise, just click ‘OK’ and exit the dialog box.

Display Modes

If the signal from the system equals the standard signal mode, the screen is adjusted automatically. If the signal from the system

doesn’t equal the standard signal mode, adjust the mode by referring to your videocard user guide; otherwise there may be no

video. For the display modes listed on the next page, the screen image has been optimized during manufacturing.

D-Sub and HDMI/DVI Input

Mode Resolution

Horizontal Frequency

(KHz)

Vertical Frequency

(Hz)

Pixel Clock Frequency

(MHz)

Sync Polarity

(H / V)

IBM

640 x 350 31.469 70.086 25.175 +/-

720 x 400 31.469 70.087 28.322 -/+

MAC

640 x 480 35.000 66.667 30.240 -/-

832 x 624 49.726 74.551 57.284 -/-

1152 x 870 68.681 75.062 100.000 -/-

VESA CVT

720 x 576 35.910 59.950 32.750 -/+

1152 x 864 53.783 59.959 81.750 -/+

1280 x 720 44.772 59.855 74.500 -/+

1280 x 720 56.456 74.777 95.750 -/+

1280 x 960 75.231 74.857 130.000 -/+

VESA DMT

640 x 480 31.469 59.940 25.175 -/-

640 x 480 37.861 72.809 31.500 -/-

640 x 480 37.500 75.000 31.500 -/-

800 x 600 37.879 60.317 40.000 +/+

800 x 600 48.077 72.188 50.000 +/+

800 x 600 46.875 75.000 49.500 +/+

1024 x 768 48.363 60.004 65.000 -/-

1024 x 768 56.476 70.069 75.000 -/-

1024 x 768 60.023 75.029 78.750 +/+

1152 x 864 67.500 75.000 108.000 +/+

1280 x 1024 63.981 60.020 108.000 +/+

1280 x 1024 79.976 75.025 135.000 +/+

1280 x 800 49.702 59.810 83.500 -/+

1280 x 800 62.795 74.934 106.500 -/+

1280 x 960 60.000 60.000 108.000 +/+

1360 x 768 47.712 60.015 85.500 +/+

1440 x 900 55.935 59.887 106.500 -/+

1440 x 900 70.635 74.984 136.750 -/+

1680 x 1050 65.290 59.954 146.250 -/+

VESA GTF

1280 x 720 52.500 70.000 89.040 -/+

1280 x 1024 74.620 70.000 128.943 -/-

VESA DMT /

DTV CEA

1920 x 1080p 67.500 60.000 148.500 +/+

When using an HDMI / DVI cable connection, you must use the HDMI IN 3(DVI) jack.

The interlace mode is not supported.

The set might operate abnormally if a non-standard video format is selected.

Separate and Composite modes are supported. SOG is not supported.

Too long or low quality VGA cable can cause picture noise at high resolution modes (1920x1080).

¦

•

■

N

BN68-02327L-03Eng.indb 17 2009-10-08 �� 10:28:49

La pagina si sta caricando...

English - 20

Selecting the Sound Mode

You can set the sound mode in the Tools menu. When you set to Dual l ll, the current sound mode is displayed on the screen.

Audio Type Dual 1 / 2 Default

A2 Stereo

Mono MONO

Automatic change

Stereo STEREO ↔ MONO

Dual DUAL 1 ↔ DUAL 2 DUAL 1

NICAM

Stereo

Mono MONO

Automatic change

Stereo MONO ↔ STEREO

Dual

MONO ↔ DUAL 1

DUAL 2

DUAL 1

If the stereo signal is weak and an automatic switching occurs, then switch to the mono.

This function is only activated in stereo sound signal. It is deactivated in mono sound signal.

This function is only available in TV mode.

¦

N

SETUP

Configuring the Setup Menu

Menu Language

You can set the menu language.

Time

For detailed procedures on setting up options, refer to the ‘Setting the Time’ instructions.

Broadcast

Subtitle

You can activate and deactivate the subtitles. Use this menu to set the Subtitle Mode. Normal under the menu is the basic subtitle

and Hard of hearing is the subtitle for a hearing-impaired person.

Subtitle→Off/On

Switches subtitles on or off.

Mode→Normal/Hardofhearing

Sets the subtitle mode.

Subtitle Language

Set the subtitle language.

If the programme you are watching does not support the Hard of hearing function, Normal automatically is activated

even though Hard of hearing mode is selected.

English is the default in cases where the selected language is unavailable in the broadcast.

You can select these options simply by pressing the SUBT. button on the remote control.

DigitalText→Disable/Enable (UK only)

If the programme broadcasts with digital text, this feature is enabled.

MHEG (Multimedia and Hypermedia Information Coding Experts Group)

An International standard for data encoding systems used in multimedia and hypermedia. This is at a higher level than the

MPEG system which includes data-linking hypermedia such as still images, character service, animation, graphic and video

files as well as multimedia data. MHEG is user runtime interaction technology and is being applied to various fields including

VOD (Video-On-Demand), ITV (Interactive TV), EC (Electronic Commerce), tele-education, tele-conferencing, digital libraries

and network games.

¦

❑

■

●

N

O

■

N

Plug&Play

MenuLanguage :English ▶

Time

Broadcast

Security

Network

General

Setup

BN68-02327L-03Eng.indb 20 2009-10-08 �� 10:28:50

La pagina si sta caricando...

English - 28

If Security Key is not set: When the security setting of AP that supports WPS is NONE,

you can select PBC, PIN, None Security. None Security is capable of connecting to AP

directly without using WPS function.

Process of PBC, PIN is same as above. Refer to if Security Key is already set.

Try again if connecting operation doesn’t work.

Ad-hoc: You can connect to a mobile device without an access point through the

‘Samsung Wireless LAN Adapter’ by using a peer to peer network.

How to connect to new Ad-hoc

1. Choose Select a network, then a device list is displayed.

2.

While in the device list, press the Blue button on the remote or select

Ad-hoc.

The message The existing network system may have limited

functionality. Do you want to change the network connection? is

displayed.

3.

Input the generated Network Name(SSID) and Security Key into the

device you want to connect.

N

How to connect an existing Ad-hoc device

1. Choose Select a network, the device list is displayed.

2.

Select the device you want in the Device list.

3.

If security key was applied, input the security key again.

If network doesn’t operate normally, please check the

Network Name(SSID) and Security Key again. If the Security Key is

incorrect, it may be the reason for the malfunction.

N

Wireless Network Setup-Auto

If you want to connect AP, AP should support DHCP. Only devices which support Ad-hoc mode

can be connected without DHCP.

1.

Set Network Type to Wireless.

2.

Select Wireless Network Setup.

3.

Set Internet Protocol Setup to Auto.

The Internet Protocol is set automatically.

4.

Select a network through Select a network.

5.

Select Network Test to check the network connectivity.

Wireless Network Setup-Manual

1. Set Network Type to Wireless.

2.

Select Wireless Network Setup.

3.

Set Internet Protocol Setup to Manual.

4.

Set up IP Address, Subnet Mask, Gateway and DNS Server.

Press the number buttons on the remote control when you set the Network manually.

5.

Select a network through Select a network.

6.

Select Network Test to check the network connectivity.

●

N



N

WirelessNetworkSetup



U

Move

E

Enter

R

Return

Selectanetwork 3/9



Search



Ad-hoc

sson

jee

AP_1

Ap_2

PBC

NoneSecurity

InternetProtocolSetup :Auto  ▶

NetworkTest

Selectanetwork :AP1

U

Move

E

Enter

R

Return

WirelessNetworkSetup

IPAddress :   

SubnetMask :   

Gateway :    

DNSServer :

  

InternetProtocolSetup :Manual  ▶

NetworkTest

Selectanetwork :AP1

U

Move

E

Enter

R

Return

WirelessNetworkSetup

IPAddress :

0



0



0



0

SubnetMask :

0



0



0



0

Gateway :

0



0



0



0



DNSServer :

0



0



0



0

Theexistingnetworksystemmayhavelimited

functionality.Doyouwanttochangethenetwork

connection?

Yes No

BN68-02327L-03Eng.indb 28 2009-10-08 �� 10:28:55

English - 29

INPUT / SUPPORT

Input Menu

Source List

Use to select TV or other external input sources such as DVD / Blu-ray players / Cable Box /

Satellite receivers (Set-Top Box) connected to the TV. Use to select the input source of your

choice.

Press the SOURCE button on the remote control to view an external signal source. TV

mode can be selected by pressing the TV button.

TV / Ext.1 / Ext.2 / AV / Component / PC / HDMI1 / HDMI2 / HDMI3/DVI / HDMI4 / USB 1 /

USB 2

You can choose only those external devices that are connected to the TV. In the

Source List, connected inputs will be highlighted and sorted to the top. Inputs that are not

connected will be sorted to the bottom.

If USB devices are connected to the USB 1 (HDD) and USB 2 jacks, they are displayed as

USB1 and USB 2 in order.

Ext. and PC always stay activated.

Using the Colour buttons on the remote with the Source list

Red (Refresh): Refreshes the connected external devices. Press this if your Source is

on and connected, but does not appear in the list.

TOOLS (Tools): Displays the Edit Name and Information menus.

Edit Name

VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI / DVI PC / TV / IPTV / Blu-ray

/ HD DVD / DMA

Name the device connected to the input jacks to make your input source selection easier.

When a PC with a resolution of 1920 x 1080@60Hz is connected to the HDMI IN 3(DVI) port, you should set the HDMI3/DVI

mode to DVI PC in the Edit Name of the Input mode.

When connecting an HDMI/DVI cable to the HDMI IN 3(DVI) port, you should set the HDMI3/DVI mode to DVI or DVI PC in

the Edit Name of the Input mode. In this case, a separate sound connection is required.

Support Menu

Legal Notice

View the Legal Notice and General Disclaimer regarding Third Party Contents and Service.

The General Disclaimer may differ depending on the country.

Product Guide

The Product Guide gives you information on the most important features of this TV.

The descriptions provided by this function are in English only.

¦

❑

O

■

N



❑

■

N

¦

❑

N

❑

LegalNotice  ▶

ProductGuide

SelfDiagnosis

SoftwareUpgrade

HDConnectionGuide

ContactSamsung

Support

SourceList 

EditName

Input

Refresh

T

Tools

SourceList

TV

Ext.1 :----

Ext.2 :----

PC :----

AV :----

Component :----

BN68-02327L-03Eng.indb 29 2009-10-08 �� 10:28:56

La pagina si sta caricando...

English - 33

Media Play Function

This function enables you to view and listen to photo, music and/or movie files saved on a USB Mass Storage Class (MSC) device.

It might not work properly with unlicensed multimedia files.

Entering the Media Play (USB & DLNA) Menu

1. Press the MENU button. Press the ▲ or ▼ button to select Application, then

press the ENTER

E

button.

2.

Press the ▲ or ▼ button to select Media Play (USB & DLNA), then press the

ENTER

E

button.

The Media Play (USB & DLNA) menu is displayed.

Press the MEDIA.P button on the remote control to display the Media Play

menu.

Press the SOURCE button on the remote control to view the source list. Then

Press the ▲ or ▼ button to select USB.

3.

Press the Red button, then press the ▲ or ▼ button to select the USB Memory.

Press the ENTER

E

button.

This function differs depending on the USB Memory Device / DLNA device.

The selected USB device name appears at the bottom left of the screen.

4.

Press the ◄ or ► button to select an icon (Photo, Music, Movie, Setup), then

press the ENTER

E

button.

To exit Media Play mode, press the MEDIA.P button on the remote control.

Removing a USB Memory Device Safely

You can remove the device safely from the TV.

1.

Press the TOOLS button in the Media Play file list screen, or while a Slide Show,

music or movie is being played.

2.

Press the ▲ or ▼ button to select Remove Safely, then press the ENTER

E

button.

3.

Remove the USB device from the TV.

Screen Display

Move to either ‘Sort key List Section’, ‘Group List Section’ or ‘File List Section’ using the Up and Down buttons. After selecting a

section, press the ◄ or ► buttons to select an item.

1 Current Sort key: This field shows the current standard for sorting files. Press the ◄ or ► button to change the standard for

sorting files.

2 View Groups: Shows the detailed groups of the files sorted according the selected Sort key. The sort group where the

currently selected file is contained is highlighted.

3 Currently selected file: The selected file is the file you can now control. Photo and movie files are displayed as thumbnail

images.

4 Current Device: Shows the currently selected device name. Press the Red button to select a device.

Red (Device) button: Selects a connected device.

¦

N

O

N

•

INFO

GUIDE

CH LIST

AD

INFO

GUIDE

CH LIST

AD

851.86MB/993.02MBFree


SUM

Device


R

Return

Music Movie Setup

SUM Device

FavouritesSettings Select

T

Tools

R

Return

Preference

BasicView

Timeline

Folder

Colour








SlideShow

PlayCurrentGroup

Information

RemoveSafely

5/15

SUM Device

FavouritesSettings Select

T

Tools

R

Return

Preference

BasicView

Timeline

Folder

Colour

5/15

3

2








1File(s)Selected

1

4 5

6

Sort key List Section

Group List Section

File List Section

c

BN68-02327L-03Eng.indb 33 2009-10-08 �� 10:29:01

English - 34

5 Help Items

Green (Favourites Settings) button: Changes the Favourites Settings for the selected file. Press this button repeatedly

until the desired value appears.

Yellow (Select) button: Selects file from the file list. Selected files are marked with a symbol

c

. Press the Yellow button

again to cancel a file selection.

TOOLS (Tools) button: Displays the option menus. (The option menu changes according to the current status.)

6 Item Selection Information: Shows the number of files that are selected by pressing the Yellow button.

Sorting the Photo / Music / Movie List

Basic View

Shows the folders on the USB memory device. If you select a folder and press the

ENTER

E

button, corresponding files (Photo / Music / Movie) contained in the selected

folder are displayed.

When sorted according to the Basic View, you cannot set Favourites files.

Folder

Sorts the files by folder. If there are many folders in USB, the photos files are shown in

order in each folder. The file in the Root folder is shown first and the others are shown

in alphabetical order by name.

Preference→

FFF

/

FFF

/

FFF

/

FFF

Sorts the files by preference (Favourites).

Changing the Favourites Settings

Select the desired photo in the file list, then press the Green button repeatedly until

the desired setting appears.

The stars are for grouping purposes only. For example, the 3 star setting does not

have any priority over the one star setting.

Timeline (Photo / Movie)

Sorts and displays the music or movie titles in symbol/number/alphabet/special order.

Title (Music / Movie)

Sorts the music titles in symbol/number/alphabet/special order, and shows the music

file.


Colour→Red/Yellow/Green/Blue/Magenta/Black/Gray/Unclassified

Sorts photos by colour. You can change the photo colour information.

You should set the Use Colour View to on in the Setup menu before sorting photos by colour.

Music

Artist

Sorts the music file by artist in symbol/number/alphabet/special order.

Mood→Energetic/Rhythmical/Sad/Exciting/Calm/Unclassified

Sorts music files by the mood. You can change the music mood information.

Genre

Sorts music files by the genre.

•

¦

❑

N

❑

N

❑

N

❑

SUM Device

FavouritesSettings Select

T

Tools

R

Return

Preference

BasicView

Timeline

Folder

Colour








5/15

SUM Device

FavouritesSettings Select

T

Tools

R

Return

Preference

BasicView

Title

Folder

Genre

ILoveYou

HaHaHa

Gold

Shine

Way

WantMe

Lies

GlenHans

OnceOst

2007

Soundtrack

3/37Energetic

SUM Device

FavouritesSettings Select

T

Tools

R

Return

Preference

BasicView

Timeline

Folder

Title

ABCD.avi

1235.avi

1236.avi

1237.avi

1233.avi

1232.avi

1231.avi

5/15

BN68-02327L-03Eng.indb 34 2009-10-08 �� 10:29:05

English - 35

Photo / Music / Movie List Option Menu

1. Press the MEDIA.P button.

2.

Press the ◄ or ► button to select Photo, Music or Movie then press the

ENTER

E

button.

3.

Press the ◄ or ► button to select the desired file.

Selecting Multiple Files

Press the ◄ or ► button to select the desired file. Then press the Yellow

button.

Repeat the above operation to select multiple files.

The mark

c

appears to the selected file.

4.

Press the TOOLS button.

The option menu changes according to the current status.

Play Current Group

Using this menu, you can play a SlideShow using only the photo files in the currently

selected sorting group.

Deselect All (When at least one file is selected)

You can deselect all files.

The

c

mark indicating the corresponding file is selected is hidden.

Information

The photo / music / movie file information is displayed. You can view the information of

files during a SlideShow using the same procedures.

Press the INFO button to viewing the information.

Remove Safely

You can remove the device safely from the TV.


Slide Show

Using this menu, you can play a SlideShow using the photo files on the USB memory device.

Change Group (When the Sort key is the Colour)

You can change a selected photo file’s (or group of files) colour information in order to move it from one colour group to another.

This does not change the actual colour of the photo.

The group information of the current file is updated and the photos are moved to the new colour group.

To change the information of multiple files, select the files you want by pressing the Yellow button.

Music

Change Group (When the Sort key is Mood)

You can change the mood information of music files. The group information of the current file is updated and the file is moved to

the new group. To change the information of multiple files, select files by pressing the Yellow button.

¦

N



N

❑

N

❑

O

❑

N

❑

INFO

GUIDE

CH LIST

AD

SUM Device

FavouritesSettings Select

T

Tools

R

Return

Colour

Folder

Preference

Timeline

BasicView








SlideShow

PlayCurrentGroup

ChangeGroup

Information

RemoveSafely

5/15

SUM Device

FavouritesSettings Select

T

Tools

R

Return

Preference

BasicView

Title

Folder

Genre

HaHaHa

Gold

Shine

Way

WantMe

Lies

ILoveYou

GlenHans

OnceOst

2007

Soundtrack

3/37Energetic

PlayCurrentGroup

Information

RemoveSafely

SUM Device

FavouritesSettings Select

T

Tools

R

Return

Preference

BasicView

Timeline

Folder

Title

ABCD.avi

1235.avi

1236.avi

1237.avi

1233.avi

1232.avi

1231.avi

5/15

PlayCurrentGroup

Information

RemoveSafely

BN68-02327L-03Eng.indb 35 2009-10-08 �� 10:29:09

La pagina si sta caricando...

English - 37

Viewing a Photo or Slide Show

Viewing a Slide Show

All files in the File List Section will be used for the Slide Show.

During the slide show, files are displayed in order from the currently shown file.

The Slide Show progresses in the order sorted in the File List Section.

Music files can be automatically played during the Slide Show if the

Background Music is set to On.

While a photo list is displayed, press the

∂

(Play)/ENTER

E

button on the

remote control to start slide show.

SlideShow Control Buttons

Button Operations

ENTER

E

Play/Pause the Slide Show.

∂

Play the Slide Show.

∑

Pause the Slide Show.

∫

Exit Slide Show and return to the photo list.

π

/

μ

Change the SlideShow playing speed.

TOOLS Run various functions from the Photo menus.

Playing current group

1. Press the ▲ button to move to the Sort key Section.

2.

Press the ◄ or ► button to select a sorting standard.

3.

Press the ▼ button to move to the Group List Section.

4.

Select a group using the ◄ and ► buttons.

5.

Press the

∂

(Play) button. A slideshow begins with the files of the selected

group.

Alternatively

1.

Select a Sort key and then in the File List Section, select the photos contained in

the desired group.

To move to the previous/next group, press the

π

(REW) or

μ

(FF) button.

2.

Press the TOOLS button.

3.

Press the ▲ or ▼ button to select Play Current Group, then press the ENTER

E

button.

Only the photos in the sorting group including the selected files will be used for the Slide Show.

ToperformaSlideShowwithonlytheselectedles

1. Press the ▼ button to select the File List Section.

2.

Press the ◄ or ► button to select the desired photo in the File List Section.

3.

Press the Yellow button.

4.

Repeat the above operation to select multiple photos.

The

c

mark appears to the left of the selected photo.

If you select one file, the Slide Show will not be performed.

To deselect all selected files, press the TOOLS button and select Deselect All.

5.

Press the

∂

(Play)/ENTER

E

button.

The selected files will be used for the Slide Show.

Alternatively

1. In the File List Section, press the Yellow buttons to select the desired photos.

2.

Press the TOOLS button.

3.

Press the ▲ or ▼ button to select Slide Show, then press the ENTER

E

button.

The selected files will be used for the Slide Show.

¦

N

O

N

●

N

●

N

INFO

GUIDE

CH LIST

AD

SUM Device

FavouritesSettings Select

T

Tools

R

Return

BasicView

Timeline

Folder

Colour








SlideShow

PlayCurrentGroup

Information

RemoveSafely

5/15

Preference

E

Pause◀▶Previous/Next

T

Tools

R

Return

SUM


580x7652009/01/025/15

▶Normal

SUM Device

FavouritesSettings Select

T

Tools

R

Return

BasicView

Timeline

Folder

Colour








5/15

Preference

BN68-02327L-03Eng.indb 37 2009-10-08 �� 10:29:15

La pagina si sta caricando...

English - 39

Playing a Movie File

Playingamoviele

1. Press the ▼ button to select the File List Section.

2.

Pressing the ◄ or ► button to select a movie file to be played.

3.

Press the

∂

(Play)/ENTER

E

button.

The selected file is played.

The selected file is displayed at the top with its playing time.

The playing duration of a movie file may be displayed as ‘00:00:00’ if its

playing time information is not found at the start of the file.

You can watch exciting gaming multimedia files, but the gaming function is not

supported.

Supported Subtitle Formats

Name File extension Format

MPEG-4 time-based text .ttxt XML

SAMI .smi HTML

SubRip .srt string-based

SubViewer .sub string-based

Micro DVD .sub or .txt string-based

Supported Video Formats

File extension Container Video Decoder Audio codec Resolution

*.avi AVI

Divx 3.11 / 4.x / 5.1 / 6.0

MP3

AC3

LPCM

ADPCM

720x576

XviD 1920x1080

H.264 BP / MP / HP 1920x1080

MPEG4 SP / ASP 1920x1080

Motion JPEG 800x600

*.mkv MKV

Divx 3.11 / 4.x / 5.1 / 6.0

MP3

AC3

LPCM

ADPCM

720x576

XviD 1920x1080

H.264 BP / MP / HP 1920x1080

MPEG4 SP / ASP 1920x1080

Motion JPEG 800x600

*.asf ASF

Divx 3.11 / 4.x / 5.1 / 6.0

MP3

AC3

LPCM

ADPCM

WMA

720x576

XviD 1920x1080

H.264 BP / MP / HP 1920x1080

MPEG4 SP / ASP 1920x1080

Motion JPEG 800x600

*.wmv ASF VC1 WMA 1920x1080

*.mp4

MP4

(SMP4)

H.264 BP / MP / HP

MP3

ADPCM

AAC

1920x1080

MPEG4 SP / ASP 1920x1080

XVID 1920x1080

*.3gp 3GPP

H.264 BP / MP / HP

ADPCM

AAC

1920x1080

MPEG4 SP / ASP 1920x1080

*.vro

VRO

VOB

MPEG2

AC3

MPEG

LPCM

1920x1080

MPEG2 1920x1080

*.mpg

*.mpeg

PS

MPEG1

AC3

MPEG

LPCM

1920x1080

MPEG2 1920x1080

*.ts

*.tp

*.trp

TS

MPEG2

AAC

MP3

1920x1080

H.264 1920x1080

VC1 1920x1080

¦

N

E

Pause◀▶Jump

T

Tools

R

Return

SUM

ABC.avi

▶00:00:01/00:05:303/37

BN68-02327L-03Eng.indb 39 2009-10-08 �� 10:29:16

La pagina si sta caricando...

English - 57

Troubleshooting for internet@TV

Problem Possible Solution

Some widget services do not work. Check with that service provider.

In the widget, press the green button and get contact information or refer to

help website for widget service provider information.

Refer to Help website page.

Some widget contents only have English. How

can I change the language?

Widget content language may be different from widget user interface language.

It depends on service provider.

After factory reset, Yahoo Widget service

doesn’t work and warning message is

displayed.

After factory reset, turn off and on your TV. Then restart Internet@TV.

At the Flickr widget, I logged in my account.

But, I can’t view my picture.

Visit Yahoo Web site, and activate your Flickr account at your Yahoo! ID.

At the Profile widget, I did change location,

but the previous setting still remains.

Turn off and on your TV. Then restart Internet@TV.

Now, you can enjoy widget services supported in changed location.

Help Website

Approaching step may be changed later on.

It can be different links for special countries.

¦

N

Country Website

Austria www.samsung.com → Produkte → Fernseher → [email protected] → Internet@TV

Belgium

www.samsung.com → Producten → televisies → [email protected] → Internet@TV

www.samsung.com → Produits → téléviseurs → [email protected] → Internet@TV

Czech www.samsung.com → Produkty → televizory → [email protected] → Internet@TV

Denmark www.samsung.com → Produkter → stue & soveværelse → [email protected] → Internet@TV

Finland www.samsung.com → Tuotteet → kodinelektroniikka → [email protected] → Internet@TV

France www.samsung.com → Produits → télévisions → [email protected] → Internet@TV

Germany www.samsung.com → Privatkunden → Fernseher → [email protected] → Internet@TV

Greece www.samsung.com → Προϊόντα → τηλεοράσεις → [email protected] → Internet@TV

Hungary www.samsung.com → Termékek → televíziók → [email protected] → Internet@TV

Ireland www.samsung.com → Products → Television → [email protected] → Internet@TV

Italy www.samsung.com → Prodotti → TV → [email protected] → Internet@TV

Netherlands www.samsung.com → Producten → televisies → [email protected] → Internet@TV

Norway www.samsung.com → Produkter → hverdagsrom & soverom → [email protected] → Internet@TV

Poland www.samsung.com → Produkty → telewizory → [email protected] → Internet@TV

Portugal www.samsung.com → Produtos para Consumidores → televisores → [email protected] → Internet@TV

Slovakia www.samsung.com → Produkty → televízory → [email protected] → Internet@TV

Spain www.samsung.com → Productos → televisores → [email protected] → Internet@TV

Sweden www.samsung.com → Produkter → vardagsrum & sovrum → [email protected] → Internet@TV

Switzerland

www.samsung.com → Produits → télévisions → [email protected] → Internet@TV

www.samsung.com → Produkte → Fernseher → [email protected] → Internet@TV

United Kingdom www.samsung.com → Products → Television → [email protected] → Internet@TV

Turkey www.samsung.com → Tüketici Ürünleri → televizyon → [email protected] → Internet@TV

Estonia www.samsung.com → Klientidele → Televiisorid → [email protected] → Internet@TV

Latvia www.samsung.com → Klientiem → Televizori → [email protected] → Internet@TV

Lithuania www.samsung.com → Namams → Televizoriai → [email protected] → Internet@TV

Russia www.samsung.com → Продукты → Телевизоры → [email protected] → Internet@TV

Ukraine www.samsung.com → Потребительские продукты → телевизоры → [email protected] → Internet@TV

BN68-02327L-03Eng.indb 57 2009-10-08 �� 10:29:24

La pagina si sta caricando...

English - 60

Troubleshooting for internet@TV

Problem Possible Solution

Some widget services do not work. Check with that service provider.

In the widget, press the green button and get contact information or refer to help

website for widget service provider information.

Refer to Help website page.

What is the advantage of single sign

on?

If you create account and register your login information of desired service, you can

access personalized content without additional login.

When a network error occurred, I can’t

use other menus except setting menu.

If network connection doesn’t work, your service might be limited.

Because all of function except setting menu are needed to connect internet.

Is there any possibility to show adult

movies on YouTube?

Basically, at the list on the menu it is filtered out. But by using search function, It can

be shown. In this case, using the Widget Gallery lock the widget service.
