Samsung PS50A451P1 Manuale utente

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at

www.samsung.com/global/register

imagine the possibilities

Plasma TV

user manual

BN68-01417A-01

Contact SAMSUNG WORLD-WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG

customer care centre.

Country

Customer Care Centre 

Web Site

AUSTRIA 0800-SAMSUNG(726-7864) www.samsung.com/at

BELGIUM 0032 (0)2 201 24 18 www.samsung.com/be

CZECH REPUBLIC

844 000 844 www.samsung.com/cz

Distributor pro Českou republiku:

Samsung Zrt., česka organizační složka Vyskočilova 4, 14000 Praha 4

DENMARK 70 70 19 70 www.samsung.com/dk

EIRE 0818 717 100 www.samsung.com/ie

ESTONIA 800-7267 www.samsung.ee

FINLAND 030-6227 515 www.samsung.com/fi

FRANCE

"3260 SAMSUNG (€ 0,15/Min)

08 25 08 65 65 (€ 0,15/Min)"

www.samsung.com

GERMANY 01805 - SAMSUNG(726-7864 € 0,14/Min) www.samsung.com

HUNGARY 06-80-SAMSUNG(726-7864) www.samsung.com

ITALIA 800-SAMSUNG(726-7864) www.samsung.com

KAZAKHSTAN 8-10-800-500-55-500 www.samsung.kz

KYRGYZSTAN 00-800-500-55-500 -

LATVIA 800-7267 www.samsung.com/lv

LITHUANIA 8-800-77777 www.samsung.lt

LUXEMBURG 0035 (0)2 261 03 710 www.samsung.com/be

NETHERLANDS 0900-SAMSUNG (726-7864 € 0,10/Min) www.samsung.com/nl

NORWAY 815-56 480 www.samsung.com/no

POLAND

"0 801 801 881

022-607-93-33"

www.samsung.com/pl

PORTUGAL 80820-SAMSUNG(726-7864) www.samsung.com/pt

RUSSIA 8-800-555-55-55 www.samsung.ru

SLOVAKIA 0800-SAMSUNG(726-7864) www.samsung.com/sk

SPAIN 902 10 11 30 www.samsung.com

SWEDEN 0771-400 200 www.samsung.com/se

SWITZERLAND 0800-SAMSUNG(726-7864) www.samsung.com/ch

TURKEY 444 77 11 www.samsung.com

TADJIKISTAN 8-10-800-500-55-500 -

U.K 0845 SAMSUNG (7267864) www.samsung.com

UKRAINE 8-800-502-0000 www.samsung.com

UZBEKISTAN 8-10-800-500-55-500 www.samsung.uz

Model__________Serial No.___________

BN68-01417A-00.indb 1 2008-4-2 17:38:46

La pagina sta caricando ...

English - 4

Checking Parts

Owner’s Instructions Remote Control/

AAA Batteries

Power Cord Cloth-Clean

Warranty Card/

Registration Card/

Safety Guide Manual

Cover-Bottom / Screws (2ea)

(Refer to page 38)

Ferrite Core for Power Cord Ferrite Core for S-Video

Sold Separately

Antenna Cable Component Cables Audio Cables PC Cable

Scart Cable PC Audio Cable HDMI Cable HDMI/DVI Cable

➢

Ferrite Core (Power Cord, S-Video)

The ferrite cores are used to shield the cables from interference.

When connecting a cable, open the ferrite core and clip it around the cable near

the plug.

Using the Stand-Base

➢





Two or more people should carry

the PDP. Never lay the PDP on the

floor because of possible damage

to the screen. Always keep the

PDP upright.







The PDP can rotate 20 degrees in

right and left directions.

-20° ~ 20°

BN68-01417A-00.indb 4 2008-4-2 17:38:49

English - 5

Control Panel

1

SOURCE

Toggles between all the available input sources

(TV, Ext.1, Ext.2, AV, S-Video, Component,

PC, HDMI1, HDMI2, HDMI3).

➢

In the on-screen menu, use this button as

you would use the ENTER button on the

remote control.

2

MENU

Press to see an on-screen menu of your TV’s

features.

3

– +

Press to increase or decrease the volume. In

the on-screen menu, use the – + buttons

as you would use the ◄ and ► buttons on the

remote control.

4

C/P.

Press to change channels. In the on-screen

menu, use the C/P. buttons as you

would use the ▲ and ▼ buttons on the remote

control.

5

Power Indicator

Blinks and turns off when the power is on and

lights up in stand-by mode.

6

POWER

Press to turn the TV on and off.

7

Remote Control Sensor

Aim the remote control towards this spot on the

TV.

8

Speakers

Front (or Side) Panel

➢

The product colour and shape may vary depending on the model.

BN68-01417A-00.indb 5 2008-4-2 17:38:50

La pagina sta caricando ...

English - 8

Viewing the Remote Control

1

POWER button

(turns the TV on and off)

2

Selects the TV mode directly

3

Number buttons for direct

channel access

4

One/Two-digit channel

selection

5

Temporary sound switch-off

6

Volume increase

Volume decrease

7

Channel control button

(Refer to page 15)

8

Use to quickly select

frequently used functions.

9

Control the cursor in the

menu

0

Use to see information on

the current broadcast

#

Press to select the optional

display and sound modes for

sports, cinema and games.

$

VCR/DVD Function (Rewind,

Stop, Play/Pause, Fast/

Forward)

%

Available source selection

^

Previous channel

&

Next channel

Previous channel

*

Displays the main on-screen

menu

(

TruSurround XT mode button

)

Returns to the previous

menu

a

Exit the on-screen menu

b

Picture size selection

c

Use this when connecting

a SAMSUNG DMA (Digital

Media Adapter) device

through an HDMI interface

and switching to DMA

mode.(The DMA button is

optional.)

For more information on the

operating procedures, refer

to the user manual of the

DMA. This button is available

when “Anynet+(HDMI-CEC)"

is “On” (see page 31)

d

Selects the HDMI mode

directly

e

Picture effect selection

(Refer to page 18)

Teletext Functions

(Refer to page 34)

2

Exit from the teletext display

(depending on the model)

7

Teletext store

8

Teletext size

0

Teletext reveal

!

Fastext topic selection

@

Teletext display/mix both

teletext information and the

normal broadcast

%

Teletext mode selection

(LIST/FLOF)

^

Teletext sub page

&

P :Teletext next page

P :Teletext previous page

*

Teletext index

)

Teletext hold

a

Teletext cancel

Continued...

BN68-01417A-00.indb 8 2008-4-2 17:38:56

La pagina sta caricando ...

English - 10

Plug & Play Feature

When the television is initially powered on, several basic

customer settings proceed automatically and subsequently.

The following settings are available.

☛

If you accidentally select the wrong country for your TV, the

characters on the screen may be wrongly displayed.

1 If the television is in standby mode, press the POWER button

on the remote control. The message Start Plug & Play is

displayed. Press the ENTER button.

2 The Language menu will automatically appear after several

seconds.

3 Select the appropriate language by pressing the ▲ or ▼

button.

Press the ENTER button. The message Select ‘Home Use’

when installing this TV in your home. is displayed.

4 Press the ◄ or ► button to select Store Demo or Home Use,

then press the ENTER button. The message to check the

connected status of the antenna is displayed.

➢

The default selection is Home Use.

➢

We recommend setting the TV to Home Use mode for the

best picture in your home environment.

➢

Store Demo mode is only intended for use in retail

environments.

➢

If the unit is accidentally set to Store Demo mode and you

want to return to Home Use (Standard): Press the Volume

button. When the volume OSD is displayed, press and

hold the MENU button for 5 seconds.

5 Make sure that the antenna is connected to the TV.

Press the ENTER button. The Country menu is displayed.

6 Select your country or area by pressing the ▲ or ▼ button.

Press the ENTER button.

Continued...

Plug & Play

Start Plug & Play.

OK

Enter

Plug & Play

Language

Move

Enter

English

Deutsch

Français

Italiano

▼

Plug & Play

Select ‘Home Use’

when installing this TV in your home.

Move

Enter

Store Demo Home Use

Plug & Play

Check antenna input.

Enter

OK

Plug & Play

P 1 C -- 40 MHz

0 %

Enter

Skip

Start

Skip

Plug & Play

Country

▲

United Kingdom

Austria

Eastern Europe

Others

Move

Enter

Skip

BN68-01417A-00.indb 10 2008-4-2 17:38:58

La pagina sta caricando ...

English - 12

Viewing External Signal Sources

You can switch between viewing signals from connected

equipment, such as a VCR, DVD, Set-Top Box, and the TV

source (broadcast or cable).

1 Press the MENU button to display the menu.

2 Press the ▲ or ▼ button to select Input, then press the

ENTER button.

3 Press the ENTER button again to select Source List.

4 Press the ▲ or ▼ button to select the signal source, then

press the ENTER button.

Available signal sources:

TV, Ext.1, Ext.2, AV, S-Video,

Component, PC, HDMI1, HDMI2, HDMI3

➢

You can choose only those external devices that are connected

to the TV.

➢

You can select these options simply by pressing the SOURCE

button on the remote control.

➢

To watch television programme again, press the TV button and

select the channel number required.

➢

You can also watch HDMI mode simply by pressing the HDMI

button on the remote control.

Using the TOOLS Button

You can use the TOOLS button to select your frequently used functions quickly and easily. The

“Tools” menu changes depending on which external input mode you are viewing.

1 Press the TOOLS button.

The Tools menu will appear.

2 Press the ▲ or ▼ button to select a menu, then press the

ENTER button.

3 Press the ▲/▼/◄/►/ENTER buttons to display, change, or use

the selected items.

For a more detailed description of each function, refer to the

corresponding page.

•

Anynet+(HDMI-CEC), see page 30

• Picture Mode, see page 18

• Sound Mode, see page 23

• Sleep Timer, see page 25

• SRS TS XT, see page 23

• Energy Saving, see page 27

• Dual I-II, see page 24

Move

Enter

Return

Source List :

TV 

Edit Name 

Anynet+ (HDMI-CEC)

Input

T V

Move

Enter

Return

TV

Ext.1  :−−−−

Ext.2  :−−−−

AV  :−−−−

S-Video  :−−−−

Component :−−−−

PC  :−−−−

HDMI1  :−−−−

HDMI2  :−−−−

HDMI3  :−−−−

Source List

T V

Tools

Anynet+ (HDMI-CEC)

Picture Mode : Standard

Sound Mode : Custom

Sleep Timer : Off

SRS TS XT : Off

Energy Saving : Off

Dual I-II : Mono

◄►

Adjust

ExitMove

BN68-01417A-00.indb 12 2008-4-2 17:38:59

English - 13

Editing Device Names

You can give a name to the external source.

1 Press the MENU button to display the menu.

2 Press the ▲ or ▼ button to select Input, then press the

ENTER button.

3 Press the ▲ or ▼ button to select Edit Name, then press the

ENTER button.

4 Press the ▲ or ▼ button to select the external source to be

edited, then press the ENTER button.

5 Select the required device by pressing ▲ or ▼, then press the

ENTER button.

Available device names:

VCR, DVD, Cable STB, Satellite

STB, PVR STB, AV Receiver, Game, Camcorder, PC, TV,

IPTV, Blu-Ray, HD DVD, DMA.

6 Press the EXIT button to exit.

Storing Channels Automatically

You can scan for the frequency ranges available to you

(availability depends on your country).

Automatically allocated programme numbers may not

correspond to actual or desired programme numbers.

However you can sort numbers manually and clear any

channels you do not wish to watch.

1 Press the MENU button to display the menu.

2 Press the ▲ or ▼ button to select Channel, then press the

ENTER button.

3 Press the ENTER button again. The available countries are

listed.

4 Select your country by pressing the ▲ or ▼ button, then press

the ENTER button.

5 Press the ▲ or ▼ button to select Auto Store, then press the

ENTER button.

6 Press the ENTER button again to start the search.

The search will end automatically.

➢

To stop the search before it has finished, press the MENU

or the ENTER button.

Move

Enter

Return

Source List :

TV 

Edit Name 

Anynet+ (HDMI-CEC)

Input

T V

Move

Enter

Return

Country :

United Kingdom



Auto Store 

Manual Store 

Channel Manager 

Sort 

Name 

Fine Tune 

Channel

T V

Auto Store

P 1 C -- 40 MHz

0 %

Enter

Return

Start

Move

Enter

Return

Ext.1  :−−−−

Ext.2 :

−−−−

AV :

S-Video :

Component : −−−−

PC : −−−−

HDMI1 :

HDMI2 :

HDMI3 :

Edit Name

T V

----

VCR

DVD

Cable STB

Satellite STB

PVR STB

AV Receiver

Game

▼

Move

Enter

Return

Country :

United Kingdom

Auto Store

Manual Store

Channel Manager

Sort

Name

Fine Tune

Channel

Belgium

France

Germany

Italy

Netherlands

Spain

Switzerland

United Kingdom

▼

T V

BN68-01417A-00.indb 13 2008-4-2 17:39:00

La pagina sta caricando ...

English - 15

Adding / Locking Channels

Using the Channel Manager, you can conveniently lock or add

channels.

1 Press the MENU button to display the menu.

2 Press the ▲ or ▼ button to select Channel, then press the

ENTER button.

3 Press the ▲ or ▼ button to select Channel Manager, then

press the ENTER button.

Adding channels

Using the Channel List, you can add channels.

4 Select Channel List by pressing the ENTER button.

5 Move to the ( ) field by pressing the ▲/▼/◄/► buttons,

select a channel to be added, and press the ENTER button to

add the channel.

➢

If you press the ENTER button again, the ( ) symbol

next to the channel disappears and the channel is not

added.

Locking channels

This feature allows you to prevent unauthorized users, such as

children, from watching unsuitable programmes by muting out

video and audio.

6 Press the ▲ or ▼ button to select Child Lock, then press the

ENTER button.

7 Select On by pressing the ▲ or ▼ button, then press the

ENTER button.

8 Press the ▲ or ▼ button to select Channel List, then press

the ENTER button.

9 Move to the ( ) field by pressing the ▲/▼/◄/► buttons,

select a channel to be locked, and press the ENTER button.

➢

If you press the ENTER button again, the ( ) symbol next to the channel disappears and the

channel lock is canceled.

➢

A blue screen is displayed when Child Lock is activated.

10 Press the EXIT button to exit.

➢

You can select these options simply by pressing the CH LIST

button on the remote control.

Move

Enter

Return

Country :

United Kingdom



Auto Store 

Manual Store 

Channel Manager 

Sort 

Name 

Fine Tune 

Channel

T V

Move

Enter

Return

Channel List



Child Lock : Off 

Channel Manager

T V

Channel List

P 1 C 6

1 / 10

▲

▼

Prog.

0

C --

1 C --

2 C --

3 C --

4 C --

5 C --

6 C --

7 C --

8 C --

9 C --

Add Lock

Move Enter

Page Return

BN68-01417A-00.indb 15 2008-4-2 17:39:02

English - 16

Sorting the Stored Channels

This operation allows you to change the programme numbers

of the stored channels.

This operation may be necessary after using the auto store.

1 Press the MENU button to display the menu.

2 Press the ▲ or ▼ button to select Channel, then press the

ENTER button.

3 Press the ▲ or ▼ button to select Sort, then press the ENTER

button.

4 Select the channel that you wish to move by pressing the ▲ or

▼ button, then press the ENTER button.

5 Select the number of the programme to which the channel is to

be moved by pressing the ▲ or ▼ button.

Press the ENTER button. The channel is moved to its new

position and all other channels are shifted accordingly.

6 Repeat steps 4 to 5 until you have moved all the channels to

the required programme numbers.

7 Press the EXIT button to exit.

Assigning Names to Channels

Channel names will be assigned automatically when channel

information is broadcast. These names can be changed,

allowing you to assign new names.

1 Press the MENU button to display the menu.

2 Press the ▲ or ▼ button to select Channel, then press the

ENTER button.

3 Press the ▲ or ▼ button to select Name, then press the

ENTER button.

4 Press the ▲ or ▼ button to select the channel to be assigned

to a new name, then press the ENTER button.

5 Press the ▲ or ▼ button to select a letter, a number, or a

symbol (Results in this sequence: A~Z, 0~9, +, -, *, /, blank).

Move on to the previous or next letter by pressing the ◄ or ►

button, then press the ENTER button.

6 Repeat steps 4 to 5 for each channel to be assigned to a new

name.

7 Press the EXIT button to exit.

Move

Enter

Return

Country :

United Kingdom



Auto Store 

Manual Store 

Channel Manager 

Sort 

Name 

Fine Tune 

Channel

T V

Move

Enter

Return

Prog. Ch. Name

▲

 0 C01 −−−−− 

 1 C-- −−−−−

 2 C-- −−−−−

 3 C-- −−−−−

4 C-- −−−−−

5 C-- −−−−−

6 C-- −−−−−

7 C-- −−−−−

8 C-- −−−−−

9 C-- −−−−−

  ▼

Sort

T V

Move

Enter

Return

Prog. Ch. Name

▲

 0 C01 −−−−−

1 C- - −−−−−

 2 C-- −−−−−

 3 C-- −−−−−

4 C-- −−−−−

5 C-- −−−−−

6 C-- −−−−−

7 C-- −−−−−

8 C-- −−−−−

9 C- - −−−−−

  ▼

Name

T V

Move

Enter

Return

Country :

United Kingdom



Auto Store 

Manual Store 

Channel Manager 

Sort 

Name 

Fine Tune 

Channel

T V

BN68-01417A-00.indb 16 2008-4-2 17:39:03

La pagina sta caricando ...

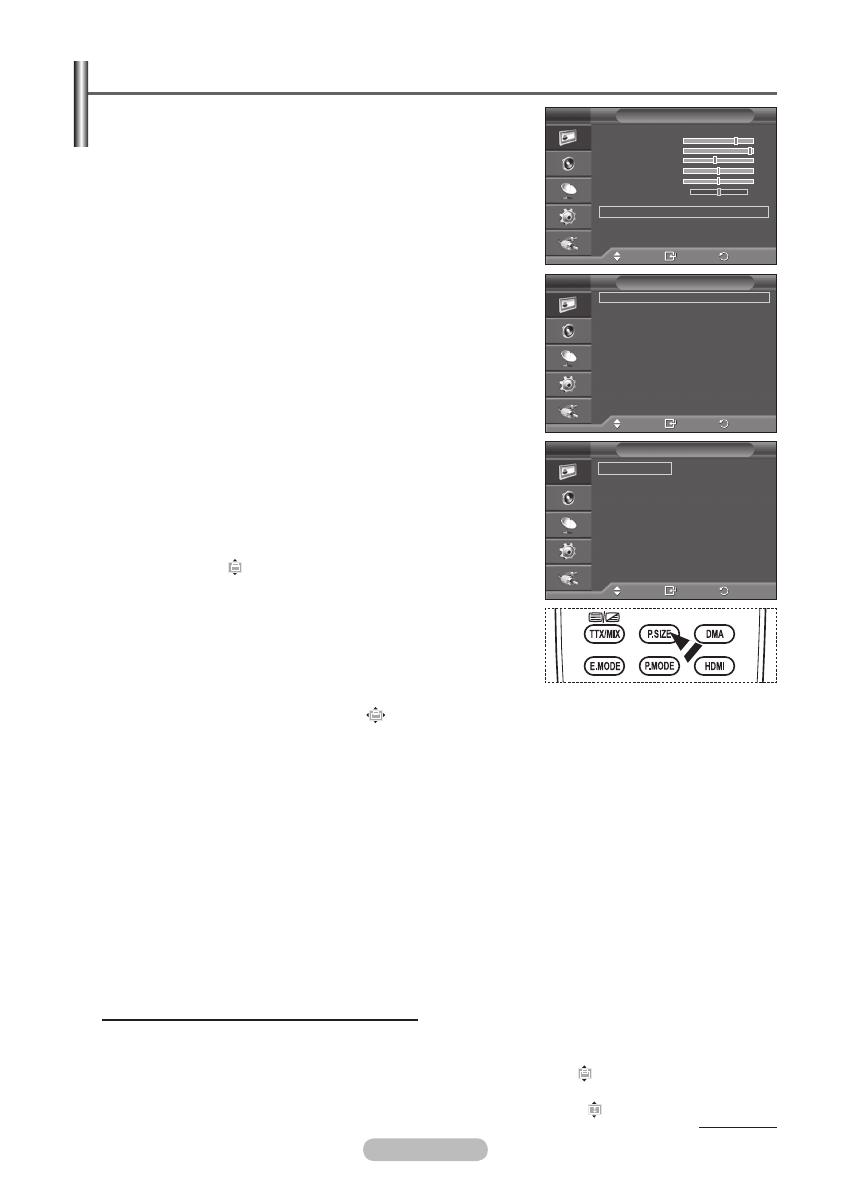

English - 20

Picture Options

You can set detailed picture settings.

1 Press the MENU button to display the menu.

2 Press the ENTER button to select Picture.

3 Press the ▲ or ▼ button to select Picture Options, then press

the ENTER button.

4 Select the required option by pressing the ▲ or ▼ button, then

press the ENTER button.

5 When you are satisfied with your setting, press the ENTER

button.

6 Press the EXIT button to exit.

➢

In PC mode, you can only make changes to the Color Tone,

Size and Screen Burn Protection from among the items in

Picture Options.

Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2

 ➢

When the picture mode is set to Dynamic or Standard,

Warm1 and Warm2 cannot be selected.

Size: Auto Wide/16:9/Wide Zoom/Zoom/4:3/Just Scan

You can select the picture size which best corresponds to your

viewing requirements.

−

Auto Wide: Expanding and pulling up the picture from 4:3 to

16:9 ratio.

− 16:9

: Sets the picture to 16:9 wide mode.

−

Wide Zoom: Magnify the size of the picture more than 4:3.

Move the screen up/down using the ▲ or ▼ button after

selecting the by pressing the ► or ENTER button.

−

Zoom: Magnify the size of the picture vertically on screen.

− 4:3

: Sets the picture to 4:3 normal mode.

−

Just Scan: Use the function to see the full image without

any cutoff when HDMI (720p/1080i), or Component (1080i)

signals are input.

After selecting Just Scan in HDMI (1080i) or Component

(1080i) mode

:

Press the ◄ or ► button to select

, then press the ENTER button.

Press the ▲, ▼, ◄ or ► button to move the picture up, down, left and right.

Reset: Press the ◄ or ► button to select Reset, then press the ENTER button. You can initialize

the setting.

  ➢

With the HDMI Just Scan picture size, depending on the AV devices, the screen may be cut off

or a specific colour appears on the screen.

➢

For an HDMI (1080p) connection of 24, 25, 30, 50, and 60 Hz, and for a Component (1080p)

connection of 50 and 60Hz, only the input source is supported.

➢

You can change the picture size simply by pressing the P.SIZE button on the remote control.

➢

Depending on the input source, the picture size options may vary.

➢

The items available may differ depending on the selected mode.

➢

Auto Wide function is available only in TV, Ext.1, Ext.2, AV, and S-Video mode.

➢

Settings can be adjusted and stored for each external device you have connected to an input of the

TV.

➢

In PC Mode, only “16:9” and “4:3” mode can be adjusted.

Positioning and Sizing the screen using Zoom

Resizing the screen using the Zoom enables the positioning and sizing of the screen to up/down

direction using the ▲ or ▼ button as well as the screen size.

Move the screen up/down using the ▲ or ▼ button after selecting the by pressing the ◄ or ►

button.

Resize the screen vertically using the ▲ or ▼ button after selecting the by pressing the ◄ or ►

button.

Continued...

Move

Enter

Return

Colour Tone :

Normal 

Size : Auto Wide 

Screen Mode : 16:9 

Digital NR : Auto 

Real 100 Hz Demo : Off 

DNle : Off 

HDMI Black Level : Normal 

Blue only mode : Off 

Screen Burn Protection 

Picture Options

T V

Move

Enter

Return

Mode : Standard



Cell Light 7

Contrast 90

Brightness 45

Sharpness 50

Colour 50

Tint G50 R50

Detailed Settings 

Picture Options 

Reset : OK




T V

Move

Enter

Return

Auto Wide

16:9

Wide Zoom

Zoom

4:3

Just Scan

Size

T V

BN68-01417A-00.indb 20 2008-4-2 17:39:06

La pagina sta caricando ...

English - 22

 ➢

Optimum condition for pixel shift;

PC TV/Ext/AV/Component/HDMI

Horizontal Dot 1 2

Vertical Line 1 2

Time (minute) 2 2 min

 ➢

The Pixel Shift value may differ depending on the monitor

size (inches) and mode.



➢

This function is not available in the Just Scan mode.

− White: This function helps remove after images on the screen by changing the colour of pixels to

white. Use this function when there are remaining after images or symbols on the screen especially

when you displayed a still image on the screen for a long time.

−

Scrolling: This function helps remove after images on the screen by moving all the pixels on the

PDP according to a pattern. Use this function when there are remaining after images or symbols on

the screen especially when you displayed a still image on the screen for a long time.

−

Side Gray: When you watch TV with the screen ratio of 4:3, the screen is prevented from any

damage by adjusting the white balance on both extreme left and right sides.

Dark: When you set the screen ratio to 4:3, it darkens the left and right sides.

Light: When you set the screen ratio to 4:3, it brightens the left and right sides.

 ➢

To remove after images on the screen, use either White or Scrolling function. Although both of

the two functions remove after images on the screen, Scrolling is more effective.

 ➢

The after image removal function has to be executed for a long time (approximately 1 hour) to

effectively remove after images on the screen. If after image is not improved after the execution

of the function, repeat the function again.

 ➢

Press any button on the remote control to cancel this feature.

Resetting the Picture Settings to the Factory Defaults

You can set detailed picture settings.

1 Press the MENU button to display the menu.

2 Press the ENTER button to select Picture.

3 Press the ▲ or ▼ button to select Reset, then press the

ENTER button.

4 Press the ▲ or ▼ button to select OK or Cancel then press

the ENTER button.

 ➢

Each mode can be reset.

Move

Enter

Return

Pixel Shift :

On 

Horizontal Dot : 2 

Vertical Line : 2 

Time : 2 min 

Pixel Shift

T V

Move

Enter

Return

Mode : Standard

Cell Light 7

Contrast 90

Brightness 45

Sharpness 50

Colour 50

Tint G50 R50

Detailed Settings

Picture Options

Reset : OK


T V

OK

Cancel

BN68-01417A-00.indb 22 2008-4-2 17:39:07

La pagina sta caricando ...

English - 24

Selecting the Sound Mode (depending on the model)

The DUAL I-II button displays/controls the processing and output of the audio signal. When power

is switched on, the mode is automatically preset to either “DUAL-I” or “Stereo”, depending on the

current transmission.

Easy Setting

1 Press the TOOLS button on the remote control.

2 Press the ▲ or ▼ button to select Dual I-II.

3 Press the ◄ or ► button to select the required option.

Type of broadcast On-screen indication

NICAM

Stereo

Regular broadcast

(Standard audio)

Mono (Normal use)

Regular + NICAM Mono NICAM

Mono

(Normal)

NICAM Stereo

NICAM

stereo

Mono

(Normal)

NICAM DUAL-I/II

NICAM

dual-1

NICAM

dual-2

Mono

(Normal)

A2

Stereo

Regular broadcast

(Standard audio)

Mono (Normal use)

Bilingual or DUAL-I/II Dual I Dual II

Stereo Stereo

Mono

(Forced mono)

➢





If the receiving conditions deteriorate, listening will be easier if the mode is set to Mono.

 



If the stereo signal is weak and automatic switching occurs, switch to Mono.

Connecting Headphones (Sold separately)

You can connect a set of headphones to your set if you wish to watch a TV program

without disturbing other people in the room.

➢

When you insert the head set jack into the corresponding

port, you can operate only “Auto Volume” in Sound menu.

➢

Prolonged use of headphones at a high volume may

damage your hearing.

➢

You will not hear sound from the speakers when you connect

headphones to the TV.

➢

The headphone volume and TV volume are adjusted

separately.

TV Side Panel

Tools

Anynet+ (HDMI-CEC)

Picture Mode : Standard

Sound Mode : Custom

Sleep Timer : Off

SRS TS XT : Off

Energy Saving : Off

DualI-II ◄ Mono ►

Move

Adjust

Exit

15

BN68-01417A-00.indb 24 2008-4-2 17:39:08

La pagina sta caricando ...

English - 26

Language / Melody / Light Effect / Entertainment /

Energy Saving / PIP

1 Press the MENU button to display the menu.

2 Press the ▲ or ▼ button to select Setup, then press the

ENTER button.

3 Select the required option by pressing the ▲ or ▼ button, then

press the ENTER button.

Available options:

Language, Melody, Light Effect,

Entertainment, Energy Saving, PIP

4 When you are satisfied with your setting, press the ENTER

button.

5 Press the EXIT button to exit.

Language

It is variable depending on the model. When you start using the television for the first time, you must

select the language which will be used for displaying menus and indications.

Light Effect: Off/In Standby/In Watching TV/Always

You can turn on/off the blue LED on the front of TV according to the situation. Use it for saving power

or when the LED dazzles your eyes.

−

Off: The blue LED is always off.

−

In Standby: The blue LED lights while in Standby mode and it turns off when your TV is turned on.

−

In Watching TV: The blue LED lights when watching TV and it turns off when your TV is turned off.

−

Always: The blue LED always lights.

➢

Set the Light Effect to Off to reduce the power consumption.

Melody: Off/Low/Medium/High

The TV power on/off melody sound can be adjusted.

Entertainment: Off/Sports/Cinema/Game

Entertainment mode enables you to select the optimal display and sound for sports, cinema and

games.

−

Off: Switches the Entertainment function off.

−

Sports: Provides the optimal picture and sound quality for sports.

−

Cinema: Provides the optimal picture and sound quality for movie watching.

You can experience a richer picture and enhanced sound.

−

Game: Provides the optimal picture and sound quality for games. This mode accelerates the

playing speed when using an external game console connected to the TV.

➢

If you set any of the three Entertainment modes to On, the settings will be locked and can not be

adjusted. If you want to make Picture and Sound mode adjustments, the Entertainment mode

must be turned off.

➢

The Entertainment settings are saved for each input source.

Continued...

Move

Enter

Return

Plug & Play



Language : English 

Time 

Light Effect

: In Watching TV



Wall-Mount Adjustment



Melody : Off 

Entertainment : Off 

Energy Saving : Off 

PIP



Setup

T V

BN68-01417A-00.indb 26 2008-4-2 17:39:10

La pagina sta caricando ...

English - 28

Input Mode (PC)

Both screen position and size will vary depending on the type of PC monitor and its resolution.

The table below shows all of the display modes that are supported:

D-Sub Input

Mode Resolution

Horizontal

Frequency

(kHz)

Vertical

Frequency

(Hz)

Pixel Clock

Frequency

(MHz)

Sync

Polarity

(H/V)

PS42A450/

PS42A451

PS50A450/

PS50A451

IBM

640 x 350

720 x 400

31.469

70.086

70.087

25.175

28.322

+ / -

- / +

✔

VESA

640 x 480

800 x 600

1024 x 768

1360 x 768

31.469

37.861

37.500

37.879

48.077

46.875

48.363

56.476

60.023

47.712

59.940

72.809

75.000

60.317

72.188

75.000

60.004

70.069

75.029

60.015

25.175

31.500

40.000

50.000

49.500

65.000

75.000

78.750

85.500

- / -

+ / +

- / -

+ / +

✔

HDMI/DVI Input

Mode Resolution

Horizontal

Frequency

(kHz)

Vertical

Frequency

(Hz)

Pixel Clock

Frequency

(MHz)

Sync

Polarity

(H/V)

PS42A450/

PS42A451

PS50A450/

PS50A451

VESA

640 x 480

800 x 600

1024 x 768

1360 x 768

31.469

37.879

48.363

47.712

59.940

60.317

60.004

60.015

25.175

40.000

65.000

85.500

- / -

+ / +

- / -

+ / +

✔

When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.

The interlace mode is not supported.

The set might operate abnormally if a non-standard video format is selected.

Separate and Composite modes are supported. SOG is not supported.

For the PS42A450/PS42A451, PC text quality is optimum in VESA mode(1024 x 768@60Hz).

For the PS50A450/PS50A451, PC text quality is optimum in VESA mode (1360 x 768@60Hz).

BN68-01417A-00.indb 28 2008-4-2 17:39:11

La pagina sta caricando ...

English - 31

Setting Up Anynet

+

The following settings are to use Anynet

+

functions.

Using the Anynet

+

Function

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Input, then press the

ENTER button.

2 Press the ▲ or ▼ button to select Anynet

+

(HDMI-CEC), then

press the ENTER button.

3 Press the ▲ or ▼ button to select Setup, then press the

ENTER button.

4 Press the ▲ or ▼ button to select Anynet

+

(HDMI-CEC), then

press the ENTER button.

5 Press the ▲ or ▼ button to select On, then press the ENTER

button.

➢

The Anynet

+

(HDMI-CEC) function is enabled.

➢

If you select Off, Anynet

+

(HDMI-CEC) is disabled.

➢

When the Anynet

+

(HDMI-CEC) function is disabled, all the

Anynet

+

related operations are deactivated.

Turning an Anynet

+

Device Off Automatically when the TV is Turned Off

4 Press the ▲ or ▼ button to select Auto Turn Off, then press

the ENTER button.

5 Press the ▲ or ▼ button to select Yes, then press the

ENTER button.

➢

The Auto Turn Off function is enabled.

➢

If you select No, the Auto Turn Off function is canceled.

Press the EXIT button to exit.

➢

The Select Device setting of the TV remote control is to be set

to TV to use the Anynet

+

function.

➢

If you set Auto Turn Off to Yes, connected external devices are also turned off when the TV is turned

off. However, if the device is recording, it may not be turned off.

Scanning and Switching between Anynet

+

Devices

1 Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Input, then press the

ENTER button.

2 Press the ▲ or ▼ button to select Anynet

+

(HDMI-CEC), then

press the ENTER button.

3 Press the ▲ or ▼ button to select Select Device, then press

the ENTER button.

4 Press the ▲ or ▼ button to select to a particular device and

press the ENTER button.

It is switched to the selected device.

5 If you cannot find a device you want, press the ▲ or ▼ button

to select Searching Connections, then press the ENTER

button.

The meassage Configuring Anynet

+

connection... is

displayed. When searching devices completes, the connected

devices are listed in the Anynet

+

menu.

➢

Switching to the selected devices may take up to 2 minutes.

You cannot cancel the operation during the switching

operation.

➢

The time required to scan for devices is determined by the number of connected devices.

➢

When the device scan is complete, the number of found devices is not displayed.

➢

Although the TV automatically scans devices when it is turned on using the POWER button, devices

connected when the TV is on or under a specific circumstance are not displayed in the device list.

Therefore select Searching Connections menu to search devices.

➢

If you have selected external input mode by pressing the SOURCE button, you cannot use the

Anynet

+

function. Make sure to switch to an Anynet

+

device by using the TOOLS button.

Continued...

Setup

Anynet

+

(HDMI-CEC)

: Off

Auto Turn Off

: Off

Searching Connections

Enter ReturnMove

Off

On

Enter

Move

View TV

Select Device 

Record 

Menu on Device 

Device Operation 

Receiver :Off 

Setup 

TV P 1

Return

Enter

Move

View TV

Select Device 

Record 

Menu on Device 

Device Operation 

Receiver :Off 

Setup 

TV P 1

Return

DVDR1

DVDR2

DVD1

DVD2

Setup

Anynet

+

(HDMI-CEC)

: On

Auto Turn Off :

: Off

Searching Connections

Enter Return

Move

No

Yes

Setup

Anynet

+

(HDMI-CEC)

: On



Auto Turn Off

: Yes



Searching Connections 

Enter ReturnMove

BN68-01417A-00.indb 31 2008-4-2 17:39:13

English - 32

Anynet

+

Menu

The Anynet

+

menu changes depending on the type and status of the Anynet

+

devices connected

to the TV.

Anynet

+

Menu Description

View TV Switches from Anynet

+

to TV broadcast mode.

Select Device Your TV connects to the corresponding device.

Record Starts a recording. (This menu works only for a device supporting

recording.)

Menu on Device Shows the menu of the connected device.

Example. When a DVD Recorder is connected, the DVD Recorder’s

title menu appears.

Device Operation Shows the play control menu of the connected device.

Example. When a DVD Recorder is connected, the play control

menu of the DVD Recorder appears.

Receiver Sound is output through the receiver.

Setup You can set the environment for using Anynet

+

.

TV Remote Control Buttons Available in Anynet

+

Mode

Device Type Operating Status Available Buttons

Anynet

+

Device

After switching to the

device, when the menu of

the corresponding device is

displayed on the screen.

Numeric buttons

▲/▼/◄/►/ENTER buttons

Colour buttons

EXIT button

After switching to the device,

while playing a file

W.LINK

(Backward search)

W.LINK

(Forward search)

W.LINK

(Stop)

W.LINK

(Play/Pause)

Device with built-in Tuner

After switching to the device,

when you are watching a TV

programme

P / button

Audio Device When a Receiver is activated

W.LINK

/

W.LINK

button

MUTE button

➢

The Anynet

+

function only works when the remote control is set to TV.

➢

The REC button works only while in the recordable state.

➢

You cannot control Anynet

+

devices using the buttons on the side of the TV. You can control Anynet

+

devices only using the TV remote control.

➢

The TV remote control may not work under certain conditions. In this case, reselect the Anynet

+

device.

➢

The Anynet

+

functions don’t operate for the products from other manufacturers.

➢

In Anynet

+

mode, the colour buttons may not work properly.

➢

The

W.LINK

,

W.LINK

operations may differ depending on the device.

Recording

You can make a recording of a TV programme using a recorder.

Press the REC button.

Recording begins. (Only when the Anynet

+

enabled recording device is connected.)

➢

The current TV programme is recorded in the Watching TV status. If you are watching video from

another device, the video from the device is recorded.

➢

You can also record the source streams by selecting Record after pressing the TOOLS button.

➢

Before recording, check whether the antenna jack is properly connected to the recording device.

For the antenna connection to the recording device, refer to its user manual.

BN68-01417A-00.indb 32 2008-4-2 17:39:14

La pagina sta caricando ...

English - 36

Wall Mount Kit Specifications (VESA)

Install your wall mount on a solid wall perpendicular to the floor.

When attaching to other building materials, please contact your nearest dealer.

If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

Product Family inch VESA Spec. (A * B) Standard Screw Quantity

LCD-TV

23 ~ 26 200

*

100 M4

4

32 ~ 40 200

*

200 M6

46 ~ 52

400 * 400

600 * 400

M8

57

700 * 400

(No VESA)

57 ~ 70 800 * 400

80 ~ 1400 * 800

PDP-TV

42 ~ 58

400 * 400

600 * 400

M8

4

63

676 * 407

(No VESA)

6

63 ~ 70 800 * 400 4

80 ~ 1400 * 800 4

➢

We provided the standard dimensions for wall mount kits as shown in the table above.

➢

When purchasing our wall mount kit, a detailed installation manual and all parts necessary for

assembly are provided.

➢

Do not use screws longer than the standard dimension, as they may cause damage to the inside of

the TV set.

➢

For wall mounts that do not comply with the VESA standard screw specifications, the length of the

screws may differ depending on their specifications.

➢

Do not use screws that do not comply with the VESA standard screw specifications.

Do not use fasten the screws too strongly, this may damage the product or cause the product to fall,

leading to personal injury. Samsung is not liable for these kinds of accidents.

➢

Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall

mount is used or the consumer fails to follow the product installation instructions.

➢

Our 57” and 63” models do not comply with VESA Specifications. Therefore, you should use our

dedicated wall mount kit for this model.

➢

Do not exceed 15 degrees tilt when mounting this TV.



Do not install your Wall Mount Kit while your TV is turned on.

It may result in personal injury due to electric shock.

BN68-01417A-00.indb 36 2008-4-2 17:39:17

English - 37

Entering the menu

1

Press the ▲, ▼, ◄ or ► button on your remote control.

➢

The Wall Mount Adjustment screen is displayed.

➢

If the Wall Mount Adjustment screen is not displayed

when clicking on a direction button while watching your

TV, use the menu to display that screen.

• Press the

MENU button to display the menu. Press the

▲ or ▼ button to select Setup, then press the ENTER

button.

• Press the ▲ or ▼ button to select

Wall-Mount

Adjustment, then press the ENTER button.

Remembering the Position

2 Adjust to the desired position using the ▲, ▼, ◄, ► buttons.

➢

If you press an arrow button when no OSD is displayed

on the TV screen, the Adjustment screen appears.

➢

Press the INFO button to reset. Press the ◄ or ► button

to select Yes, then press the ENTER button. The position

is initialized to the default setting.

3 Press the blue button.

Press the ▲ and ▼ buttons to select a save mode from

either Position1, Position2 or Position3 in order to save the

current position.

➢

To not save the current position, press the RETURN

button.

➢

When selecting a save mode, you cannot use the Colour

buttons.

4

Press the ENTER button to save.

➢

When Position1 is selected, the message Current

position saved as Position1 is displayed.

5

Press the ENTER button.

➢

The saved Position appears on the left side of the OSD.

Wall- mount adjustment (Sold separately)

Once the auto wall mount is installed, the position of your TV can be easily adjusted.

Rear Panel Auto Wall-Mount

Serial Cable(1P to 1P)(Not supplied)

Move

Enter

Return

Plug & Play



Language : English 

Time 

Light Effect

: In Watching TV



Wall-Mount Adjustment



Melody : Off 

Entertainment : Cinema 

Energy Saving : Off 

PIP 

Setup

T V

Wall-Mount Adjustment

Adjust

Save Center

►

321Position

Save

Return

Move

Enter

Select a mode to Save.

Position 1

Position 2

Position 3

BN68-01417A-00.indb 37 2008-4-2 17:39:18

English - 38

How to assemble the Stand-Base (depending on the model)

Using the 6 screws for securing the stand base and the

monitor, firmly attach the monitor to the stand base.

(The exterior of the set may be different than the picture.)

In case of installing your TV on the wall,

close the cover (1) on the stand-base

connection part using two screws for

hiding.

Warning

Firmly secure the stand to the TV

before moving it, as the stand may

fall and could cause serious injury.

➢

Two or more people should carry

the TV. Never lay the TV on the

floor because of possible damage

to the screen.

Always store the TV upright.

Moving to the remembered position

1

Complete Step 1 of Entering the menu.

2 Pressing a Colour (Red, Green, Yellow) button moves the

auto wall mount to the saved position.

➢

You can move the wall mount to one of the 3 pre-set

positions by pressing the Red (Position 1), Green

(Position 2) or Yellow (Position 3) buttons.

➢

If you adjust the position after moving to a pre-set

position, the position display will disappear.

➢

For installation, refer to the Installation Manual provided with

the wall mount.

➢

For product installation and the installation and moving of the

wall mount, make sure to consult a specialized installation

company.

➢

This installation manual is to be used when attaching the wall

mount to a wall. When attaching to other building materials,

please contact your nearest dealer.

➢

The auto wall mount will not work when Anynet+ is operating.

➢

42 inches model is not compatible with the older wall mount

model (WMN5090A).

Wall-Mount Adjustment

Adjust

Save Center

►

321Position

Position 1

BN68-01417A-00.indb 38 2008-4-2 17:39:20

La pagina sta caricando ...

English - 40

Specifications

The descriptions and characteristics in this booklet are given for information purposes only and

are subject to modification without notice.

Model Name PS42A450/PS42A451 PS50A450/PS50A451

Screen Size (Diagonal) 42 inch 50 inch

PC Resolution 1024 x 768 @ 60 Hz 1360 x 768 @ 60 Hz

Sound (Output) 10 W + 10 W 10 W + 10 W

Dimension (WxHxD)

Body

With stand

1055 x 668 x 95 mm

1055 x 728 x 316 mm

1231 x 756 x 95 mm

1231 x 815 x 316 mm

Weight

Body

With stand

27 Kg

31 Kg

35 Kg

37 Kg

Environmental

Considerations

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

10 °C to 40 °C (50 °F to 104 °F)

10% to 80%, non-condensing

-20 °C to 45 °C (-4 °F to 113 °F)

5% to 95%, non-condensing

➢





This device is a Class B digital apparatus.





Design and specifications are subject to change without prior notice.





For the power supply and Power Consumption, refer to the label attached to the product.

BN68-01417A-00.indb 40 2008-4-2 17:39:21

La pagina sta caricando ...

Samsung PS50A451P1 Manuale utente

Questo manuale è adatto anche per

Samsung PS50A451P1 Manuale utente

in altre lingue

Documenti correlati

Altri documenti
